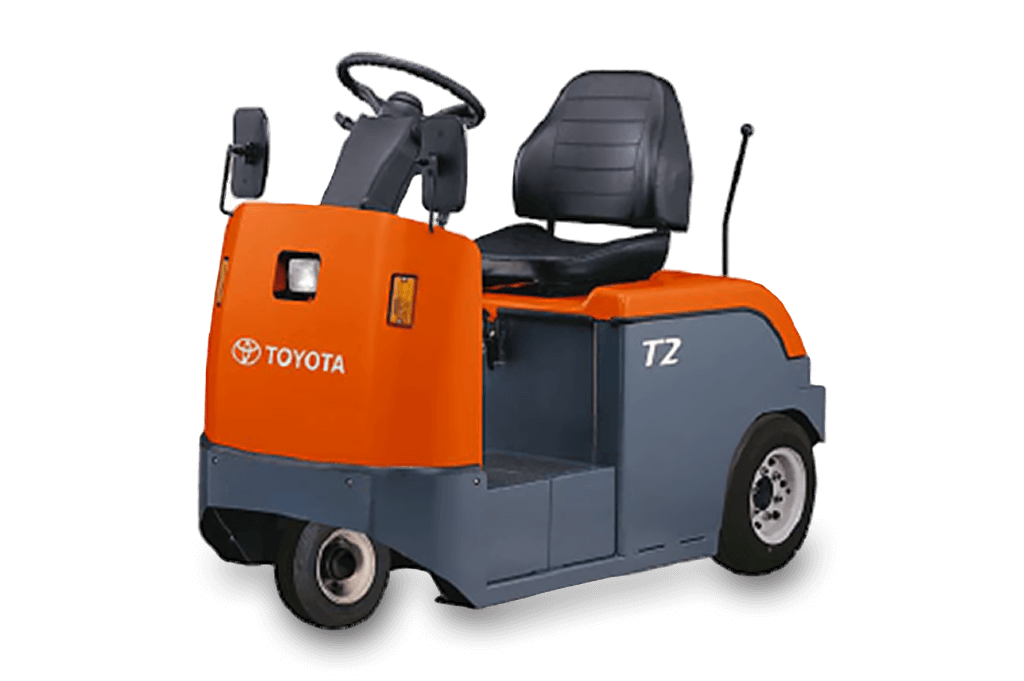

Towing Tractors - 4CBT/4CBTY-Series

4CBT/4CBTY 2 – K4

Toyota Electric Towing Tractor

  • Maximum Drawbar Pull 0.2 to 0.4 Ton 3-Minutes Rating
  • Automatic Transmission
  • Towed Weight 2 to 4 Ton 60-Minute Ratings
  • Battery Voltage 48V / 129 - 220Ah

Overview

This is what the Toyota Towing Tractor 4CBT/4CBTY series gives you! Our state-of-the-art technology, such as the powerful AC power system, makes your distribution operation easier, more efficient, and comfortable than ever.

REQUEST A BROCHURE

Core IC Cushion Forklift

A Top Seller for a Reason

A powerful top seller with strong horsepower and a compact design, the Toyota Core IC
Cushion forklift is popular in nearly all indoor applications.

Request A Quote

PERFORMANCE

50

HORSEPOWER

10.9

MPH TRAVEL SPEED

#1

SELLING IC CUSHION FORKLIFT

360-Degrees of Quality, Durability, Reliability & Value

  • Fully-stamped steel side panels
  • Large-capacity engine cooling fan
  • Toyota 136 cu. in., 4-cylinder engine (4Y-ECS)
  • Fully-sealed air-intake system
  • Independent brake & inching pedals
  • LED headlights
  • LCD multi-function display
Avatar

Ease of Service

  • Easy-access no-tools floorboard
  • Engine hood assist damper with lock device
  • Air cleaner discharge valve
  • Externally-mounted hydraulic oil return filter
  • Dash-mounted brake fluid level check
  • Easy-lift engine hood
  • Exclusive QR code diagnostics

Continued Performance

According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Core IC Cushion Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Toyota Core IC Cushion Forklift can be an asset for your company for years to come.

GET A SERVICE QUOTE

Core IC Cushion Forklift Ergonomics

  • Dash-mounted instrument display
  • 11.8″ diameter two-spoke steering wheel
  • Load Sensing Hydrostatic Steering
  • Heavy-duty non-slip rubber floor mat
  • 12″ dual operator assist grips
  • Low, wide-entry steps
  • 4-Way adjustable vinyl full-suspension seat

Specs - Core IC Cushion Forklift

  • 3,000-6,500 lb. Lifting Capacity
  • System of Active Stability (SAS)
  • Gas / LPG / Dual Fuel
Length to forkface

Length to forkface

82.3 - 98.6 in

Overhead Guard Height

Overhead Guard Height

80.1 - 80.7 in

Overall Width

Overall Width

37.2 - 43.7 in

Core IC Cushion Forklift

(Select up to 3 models to compare)
Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.) Select to Compare
8FGCU15 3,000 10.9 110 43 83.5
8FGCU18 3,500 10.9 110 40 86
8FGCSU20 4,000 10.9 110 35 87.6
8FGCU20 4000 10.6 120 36 92.3
8FGCU25 5000 10.6 120 31 94.3
8FGCU30 6000 10.6 98 25 97.5
8FGCU32 6500 10.6 98 25 98.8

* Based on 24" Load center
** Add load length and clearance


Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
California users of dual fuel models, please consult with your local Toyota dealer regarding availability.
